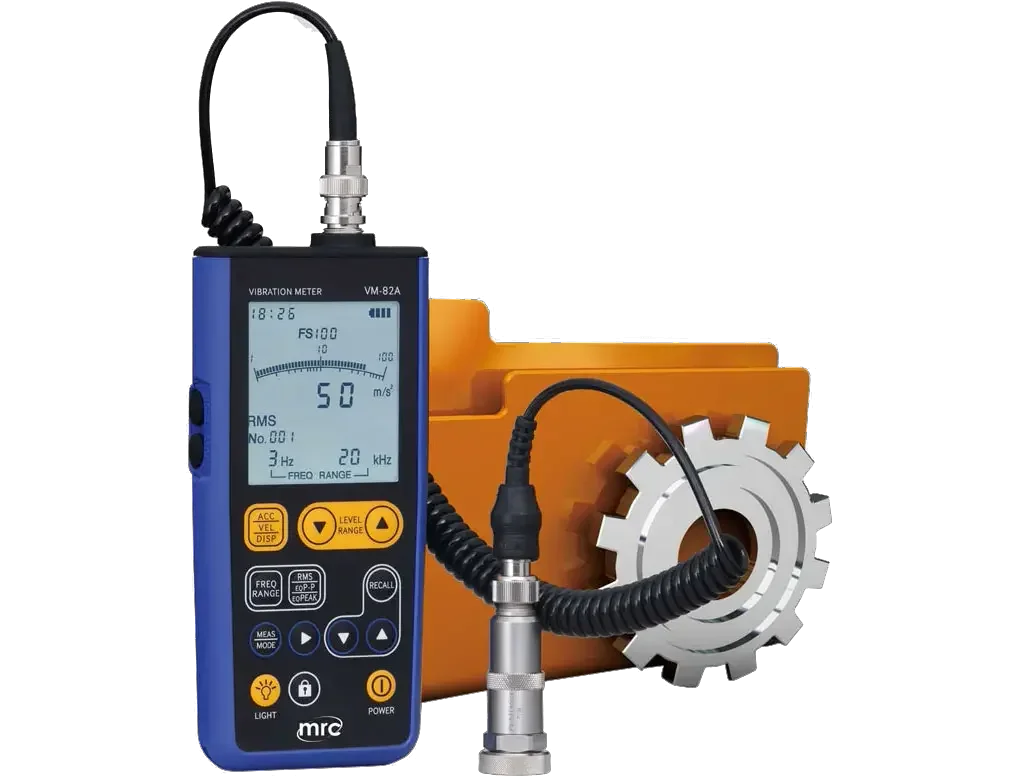

מד ויברציות - תוצרת RION יפן.
Shear-type piezoelectric accelerometer
Sensitivity: 5.1 mV/m/s2 ±3 % 80 Hz
Frequency range: 1 Hz to 5 kHz（±10 %）
Acceleration（ACC）: 0.02 to 200 m/s2 EQ PEAK 1 Hz to 5 kHz
Velocity（VEL）: 0.3 to 1 000 mm/s RMS 3 Hz to 1 kHz
0.1 to 1 000 mm/s RMS 10 Hz to 1 kHz
Displacement （DISP）: 0.02 to 100 mm EQ PEAK 3 Hz to 500 Hz
0.001 to 100 mm EQ PEAK 10 Hz to 500 Hz
