Capacity25.0 liter
Dimensions200 mm inside diameter,
528 mm overall height, 21 kg empty
CertificationASME Section VIII-01, Div. 1
Directive 2014/68/EU Article 4 Clause 3
For group 2 liquids
MaterialWetted parts 303/304 stainless steel
ShellCylindrical
Working Rated Pressure0 to 6.9 bar at 38°C
Working Rated Vacuum0 to -1 bar at from 0°C to 38°C

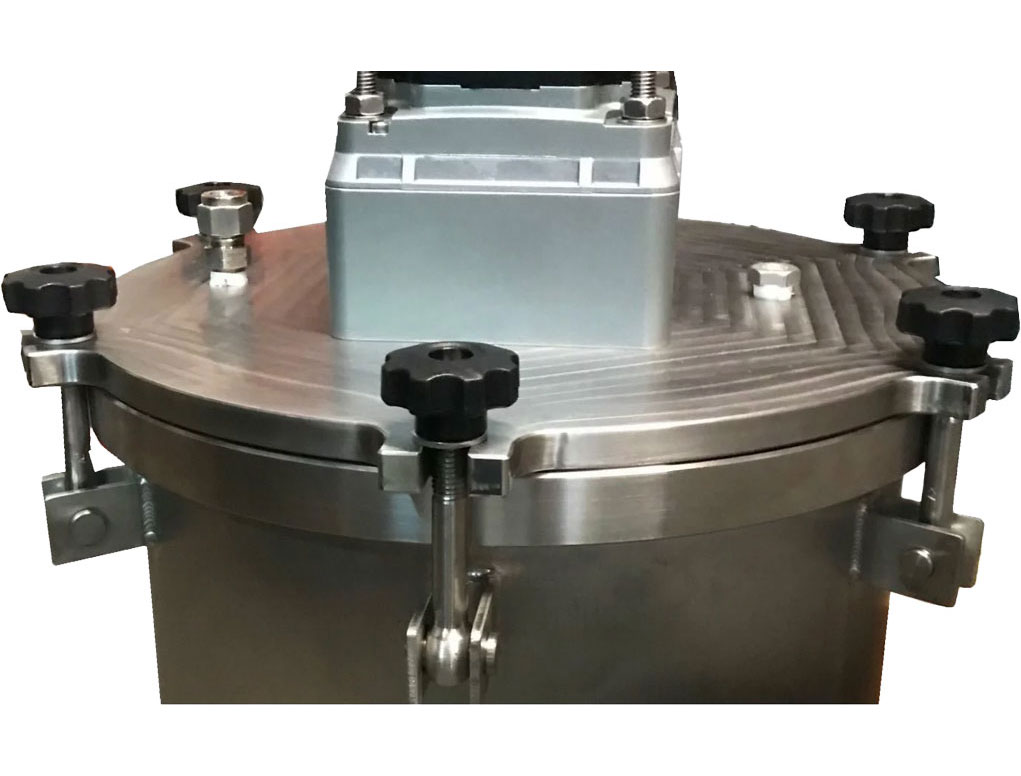

Closure6 stainless steel swing bolts and
black plastic star grips
Closure sealViton O-ring
Internal finishBrushed, welds as welded
External finishBrushed, welds as welded
Minimum speed30rpm
Maximum speed800rpm

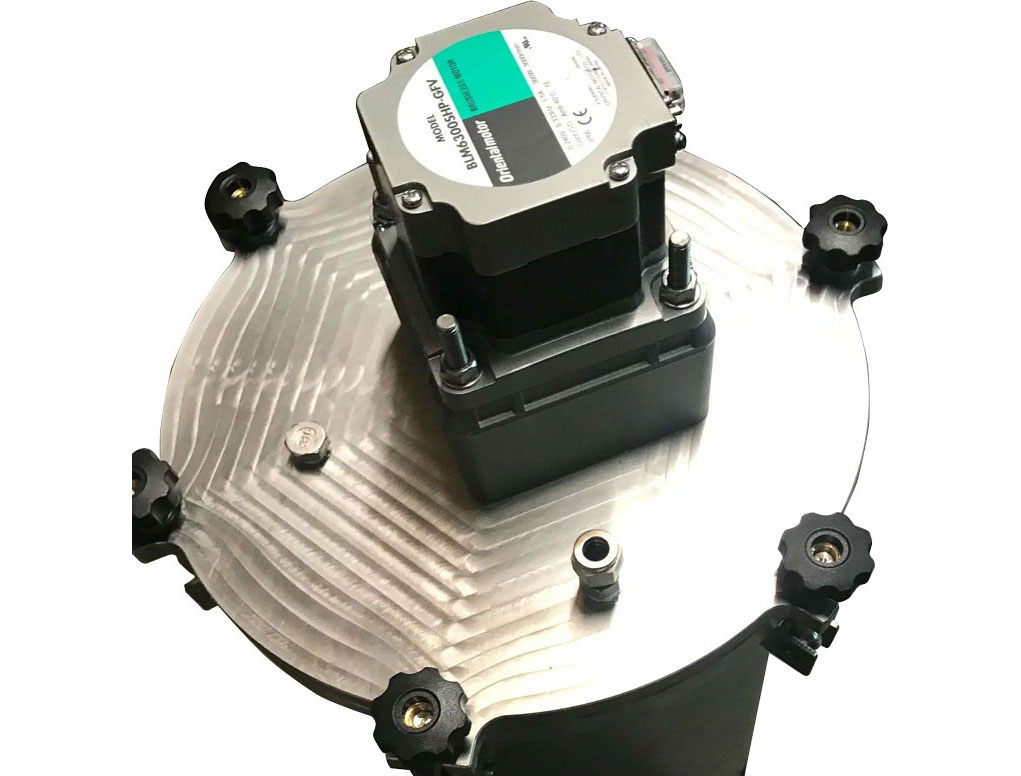

Power250W – Brushless motor – ATEX
Torque1.27Nm
RotationClockwise / Anti-Clockwise

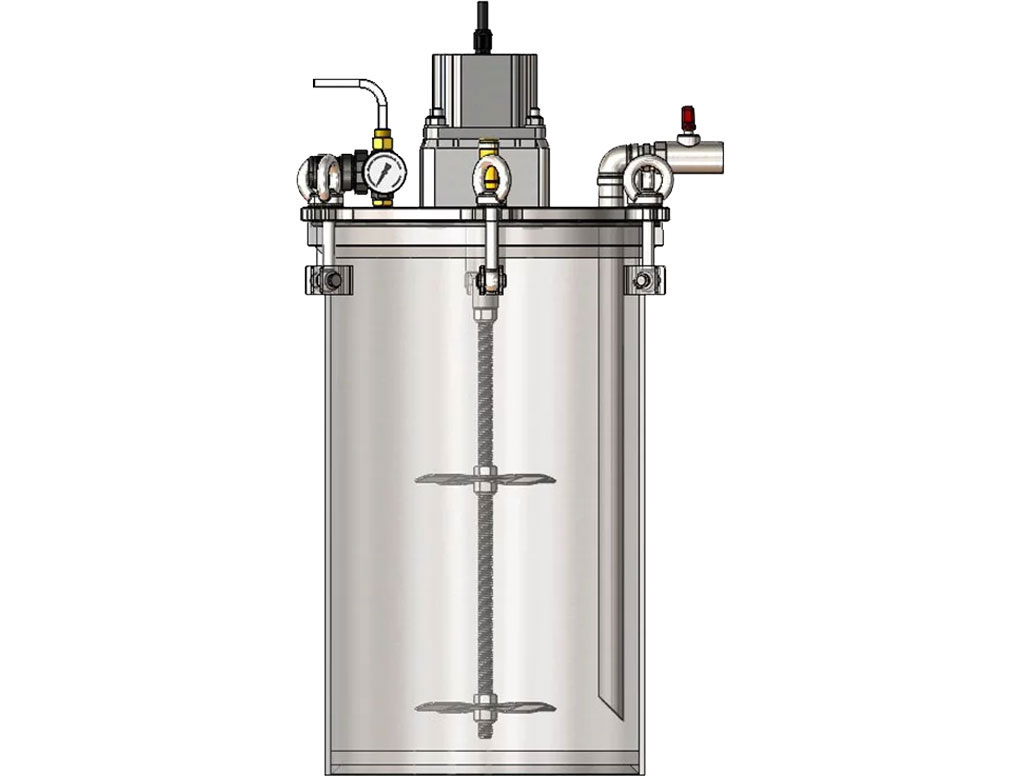

MixerStainless steel shaft and single blade Impeller
