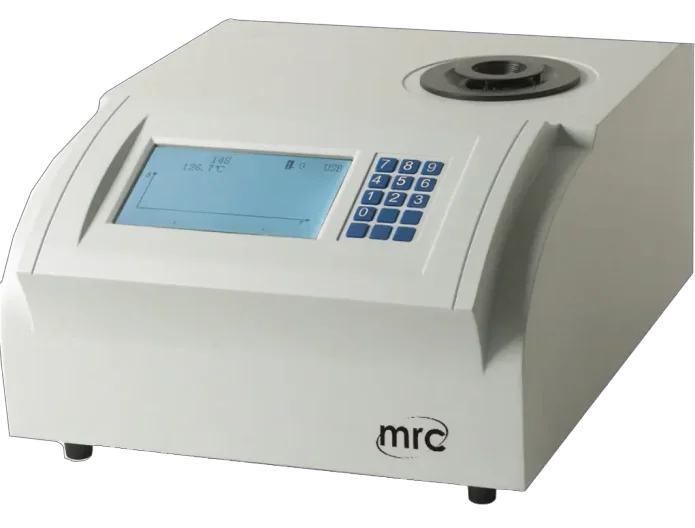

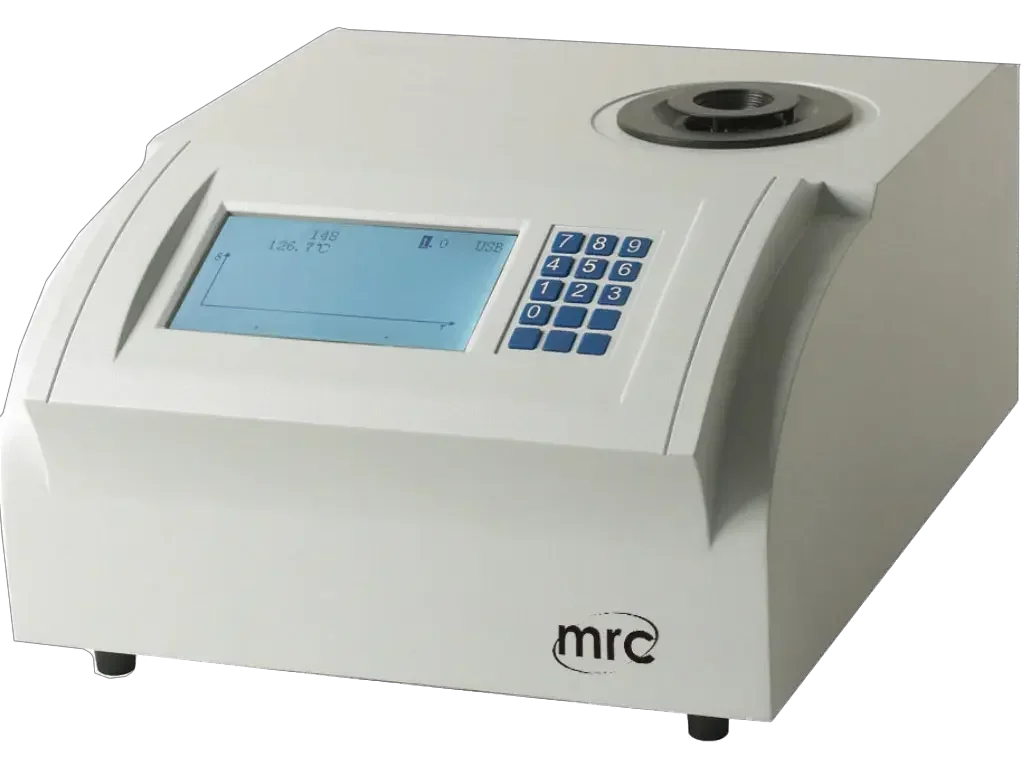

Micro Processor Melting-point Apparatus
● LCD display
● USB
● Real time melting curve.
Melting-point measurement range: room temperature -320°C
Setting rate of the “starting temp.”: 50°C~320°C ≤3 min; 320°C~50°C ≤5 min
Accuracy of starting temp.: ±0.4°C
Minimum digital display: 0.1°C
Size of the capillary: φ1.4mm(outside diameter) φ1.0mm(inside diameter), 90mm
Loading height of the sample >3mm
Linear heating-up rate: 0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0°C/min
Accuracy: ≤200°C: ±0.4°C, >200°C-320°C: ±0.7°C
Optional accessorioes: Printer (RS-TH32-SC)
Weight (Gross) / Overall Dimensions: 13.5 kg / 490x430x320mm
