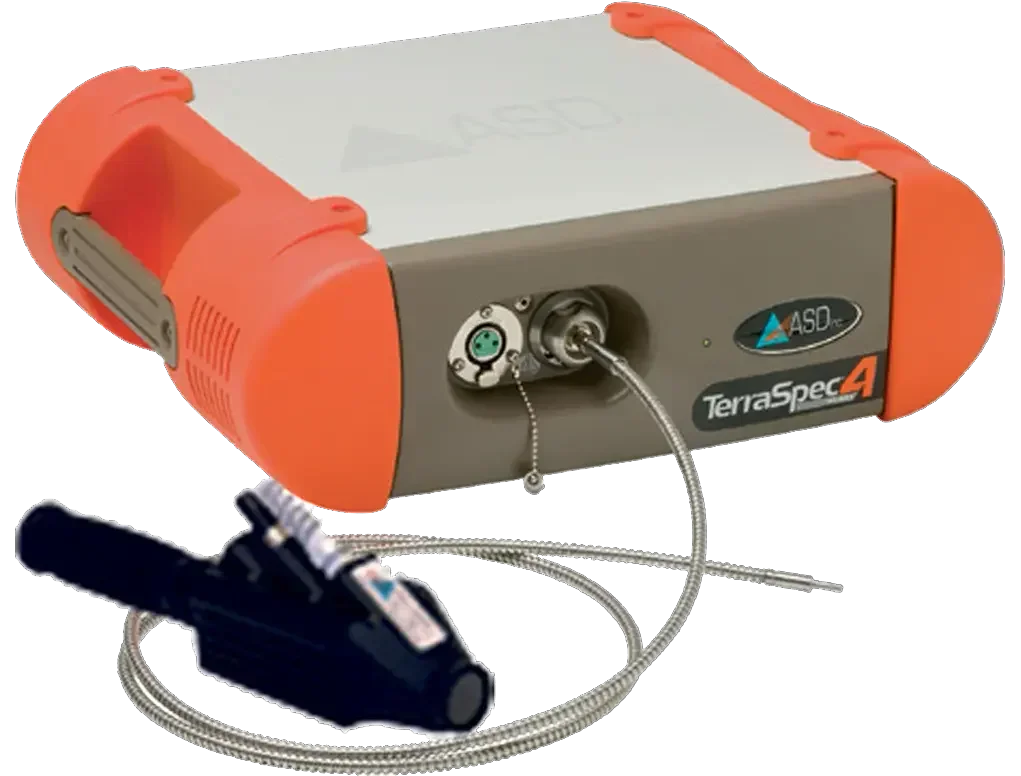

ספטקרומטר לגאולוגים נייד מהיר ומדוייק למינרלים

ספטקרומטר לגאולוגים נייד מהיר ומדוייק למינרלים

ספטקרומטר לגאולוגים נייד מהיר ומדוייק למינרלים

Wavelength range 350 - 2500 nm
Spectral resolution 3 nm @ 700 nm and
6 nm @ 1400/2100 nm
Scanning time 100 milliseconds
Photometric nois:
VNIR 4.8 x 10^-5 AU or 48 μAU @ 700 nm
SWIR1 4.8 x 10^-5 AU or 48 μAU @ 1400 nm
SWIR2 1.1 x 10^-4 AU or 110 μAU @ 2100 nm
Wavelength reproducibility 0.1 nm
Wavelength accuracy 0.5 nm
Channels 2151
VNIR detector 512 element NIR-enhanced silicon array
SWIR 1 & 2 detectors (1001-1800 nm) & (1801-2500 nm)
Graded Index InGaAs Photodiode, two stage TE Cooled
Height x width x depth 12.7 x 36.8 x 29.2 cm (5 x 14.5 x 11.5 in)
Weight 5.44 kg (12 lbs)
Battery weight 1.2 kg (2.7 lbs)
Battery run time Approximately 6 hours (without lamps or accessories)
Storage temperature -15 to 45° C (5 to 113° F)
Input power AC/DC switching power supply and a sealed lead-acid gel cell battery
AC input 90-240 VAC, 50/60 Hz
DC input 12 VDC, 60 W
Auxiliary port power Output, +12 VDC, 27 Watt (max)

קרא עוד >

מק"ט: ASD-Terraspec 4 Hi-Res

Wavelength range 350 - 2500 nm
Spectral resolution 3 nm @ 700 nm and
6 nm @ 1400/2100 nm
Scanning time 100 milliseconds
Photometric nois:
VNIR 4.8 x 10^-5 AU or 48 μAU @ 700 nm
SWIR1 4.8 x 10^-5 AU or 48 μAU @ 1400 nm
SWIR2 1.1 x 10^-4 AU or 110 μAU @ 2100 nm
Wavelength reproducibility 0.1 nm
Wavelength accuracy 0.5 nm
Channels 2151
VNIR detector 512 element NIR-enhanced silicon array
SWIR 1 & 2 detectors (1001-1800 nm) & (1801-2500 nm)
Graded Index InGaAs Photodiode, two stage TE Cooled
Height x width x depth 12.7 x 36.8 x 29.2 cm (5 x 14.5 x 11.5 in)
Weight 5.44 kg (12 lbs)
Battery weight 1.2 kg (2.7 lbs)
Battery run time Approximately 6 hours (without lamps or accessories)
Storage temperature -15 to 45° C (5 to 113° F)
Input power AC/DC switching power supply and a sealed lead-acid gel cell battery
AC input 90-240 VAC, 50/60 Hz
DC input 12 VDC, 60 W
Auxiliary port power Output, +12 VDC, 27 Watt (max)

נתונים טכניים

שימושים

תאור

Wavelength range 350 - 2500 nm
Spectral resolution 3 nm @ 700 nm and
6 nm @ 1400/2100 nm
Scanning time 100 milliseconds
Photometric nois:
VNIR 4.8 x 10^-5 AU or 48 μAU @ 700 nm
SWIR1 4.8 x 10^-5 AU or 48 μAU @ 1400 nm
SWIR2 1.1 x 10^-4 AU or 110 μAU @ 2100 nm
Wavelength reproducibility 0.1 nm
Wavelength accuracy 0.5 nm
Channels 2151
VNIR detector 512 element NIR-enhanced silicon array
SWIR 1 & 2 detectors (1001-1800 nm) & (1801-2500 nm)
Graded Index InGaAs Photodiode, two stage TE Cooled
Height x width x depth 12.7 x 36.8 x 29.2 cm (5 x 14.5 x 11.5 in)
Weight 5.44 kg (12 lbs)
Battery weight 1.2 kg (2.7 lbs)
Battery run time Approximately 6 hours (without lamps or accessories)
Storage temperature -15 to 45° C (5 to 113° F)
Input power AC/DC switching power supply and a sealed lead-acid gel cell battery
AC input 90-240 VAC, 50/60 Hz
DC input 12 VDC, 60 W
Auxiliary port power Output, +12 VDC, 27 Watt (max)
