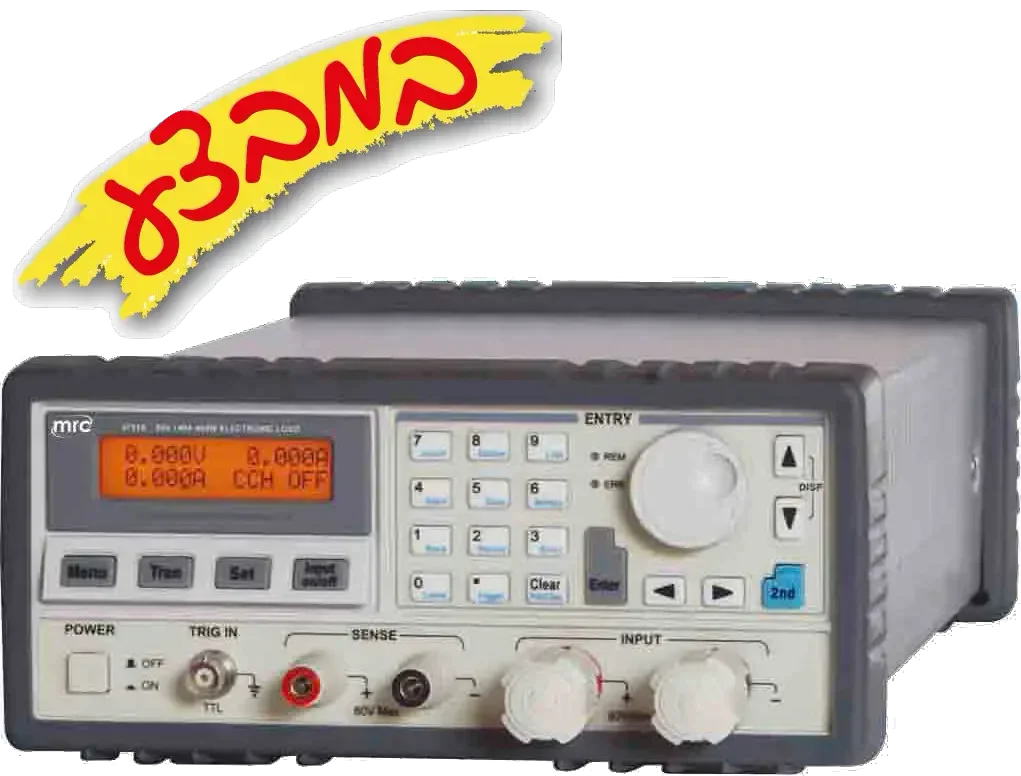

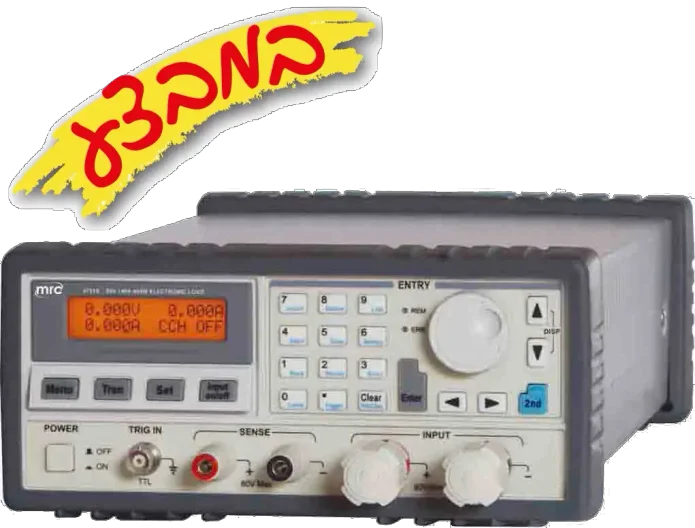

עומס אלקטרוני 0-30 אמפר עד 250 ואט
Four basic functions: CC, CV, CR and CP
Eight basic test modes: CPC, CPV, CRH, CRM, CRL, CV, CCH, CCL
Minimum operating voltage is less than 0.6V at the load's full rated current
Features High speed sequence, high speed transient, short-circuit battery discharge and other additional auxiliary functions
Programmable current slew rate
Perfect protection for high reliability in the most complicated of test situations
Multiple groups of settings and lists can be saved and recalled
Terrific ruggedized build quality
SCPI (Standard Commands for Programmable Instrumentation) is supported
Labview is supported
Inputs: 1
Input Voltage: 0~80V
Input Current: 0~30A
Input Power: 0~250W
Ripple: 5 mVrms
Voltage Accuracy: 0-80V: ±0.1%+10mV
Current Accuracy:
0-4A: ±0.1%+5mA
0-30A: ±0.1%+10mA
Maximum Resolution:
Voltage: 1 mV
Current: 0.1mA
Minimum Conductive Resistance: < 0.02 ohm
Protection: Over voltage/Over current/Over power/Over temperature/Reverse Polarity
Interface: RS232& USB (GPIB Interface is optionally available)
AC Input: 110V +/-15%, 48~63Hz (switchable)
Operating environment: 0~50deg C, 85% RH
Dimensions: 414mm Wide x 110mm High x 226mm Deep
Standard Accessories: Power cord, users manual, USB adapter cable
Optional GPIB (IEEE-488) Interface available
