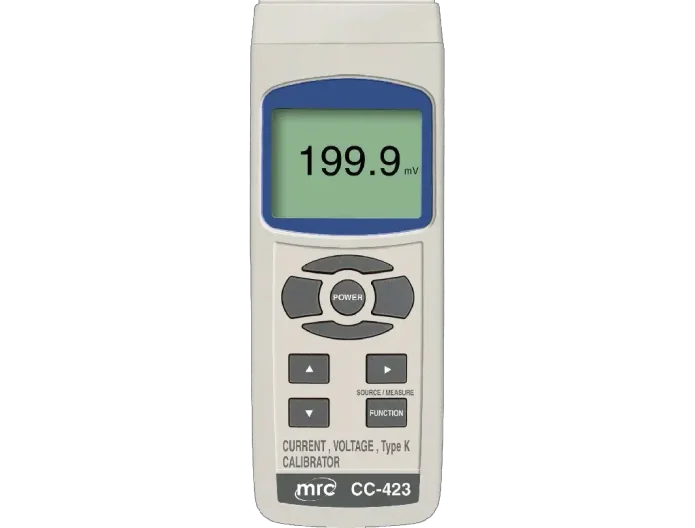

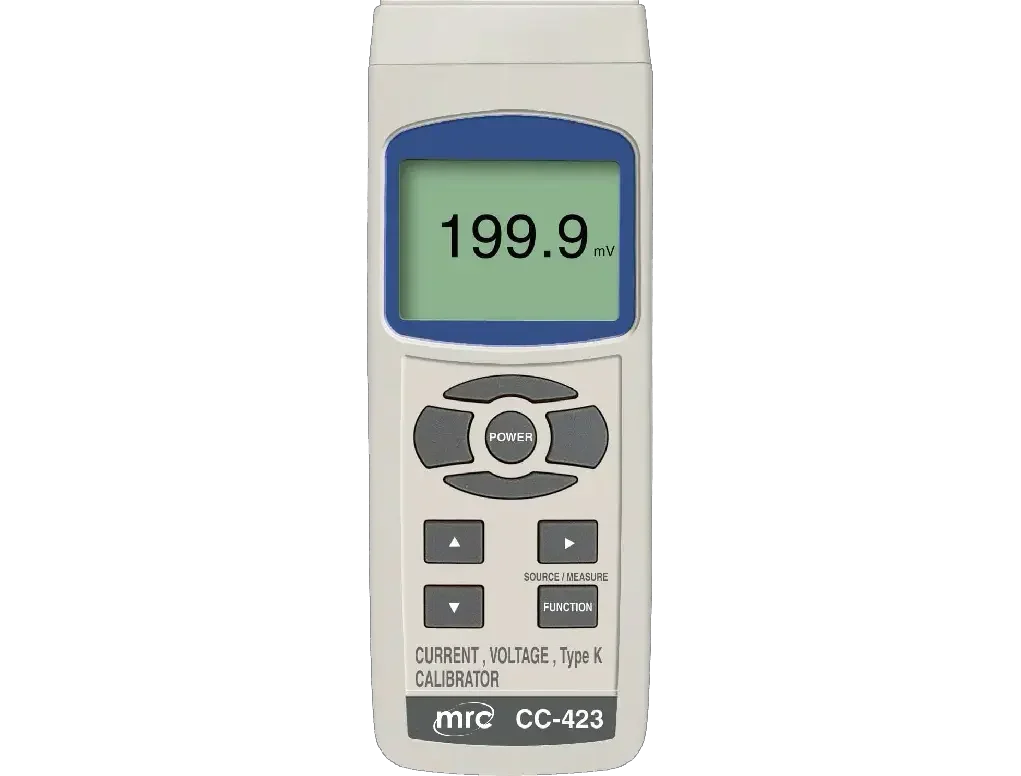

קליברטור זרם מתח+טרקמוקופל K
CURRENT, VOLTAGE, Type K CALIBRATOR
* CURRENT CALIBRATOR :
1. Current source: 0 to 24 mA
2. Current measurement : 0 to 24 mA.
3. Power ( 12V ) and current measurement of two
wires loop.
4. Resolution : 0.01 mA.
* VOLTAGE CALIBRATOR :
DC mV source: -199.9 mV to +199.9 mV.
* Type K CALIBRATOR :
1. Type K thermocouple calibrator.
2. Type K Thermocouple thermometer.
3. -199 oC to 1230 oC , -325 oF to 2246 oF.
4. oC/oF, Resolution : 0.1 degree.
* Power :
1.5V ( UM-3/AA ) battery x 6 PCs or DC 9V adapter in.
* Optional type K Temp. probes :
TP-01, TP-02A , TP-03, TP-04, TP-05.
