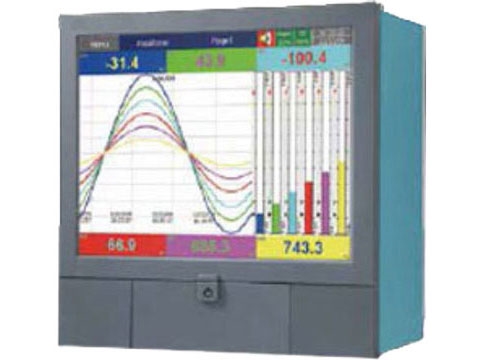

רשם אוניברסלי 12 ערוצים ללא נייר
Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Ni100,
Ni200, Ni500, JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617)
mA, V, mV
The fastest sampling rate:
To reach 100 msec / dot,
default setting at 1 sec / dot
Math, External channels, Batch,
Custom display, FDA 21 CFR part 11
Math in standard version, others in Plus versions
Display:5.6" TFT wide touch screen
Resolution 640 x 480
MTBF backlight at 25°C 20,000 hrs
BacklightLED
Screen saver, EmailYes
A faster CPU ARM Cortex-A8, 1Ghz
Internal flash memory 256 MB
RAM 256 MB
EthernetModbus TCP/IP
Optional RS-232 or RS-422/485 Modbus RTU
SD card slot, USB host x 2
Standard, one USB in the front, another USB in the back
Pulse inputOptional DI card offering either logic or high frequency pulse counter
Process controlPID, Ramp& dwell
START / STOP keyTo start / stop record and to turn off the display only, not recorder itself so that a quick start possible
Calibration correctionOn-site calibration possible, or using handy features of Offset and Gain for correction
MultilingualConvenient for local users by offering 19 languages including English, Japanese, Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese (simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable
PC software historical viewer+ configurationStandard
Extensive software data acquisition studioOptional real-time monitoring
Power supply90-250VAC or 11-36VDC
Outer dimensions (W x H x L mm)144 x 144 x189
Shorter mounting depth (mm)171
DIN panel cutout (W x H mm)137 x 137
ProtectionIP65 front, IP20 rear
Operating temperature0°C to 50°C
Storage temperature-30°C to 70°C
Safety standardsCE, cULus, RoHS
