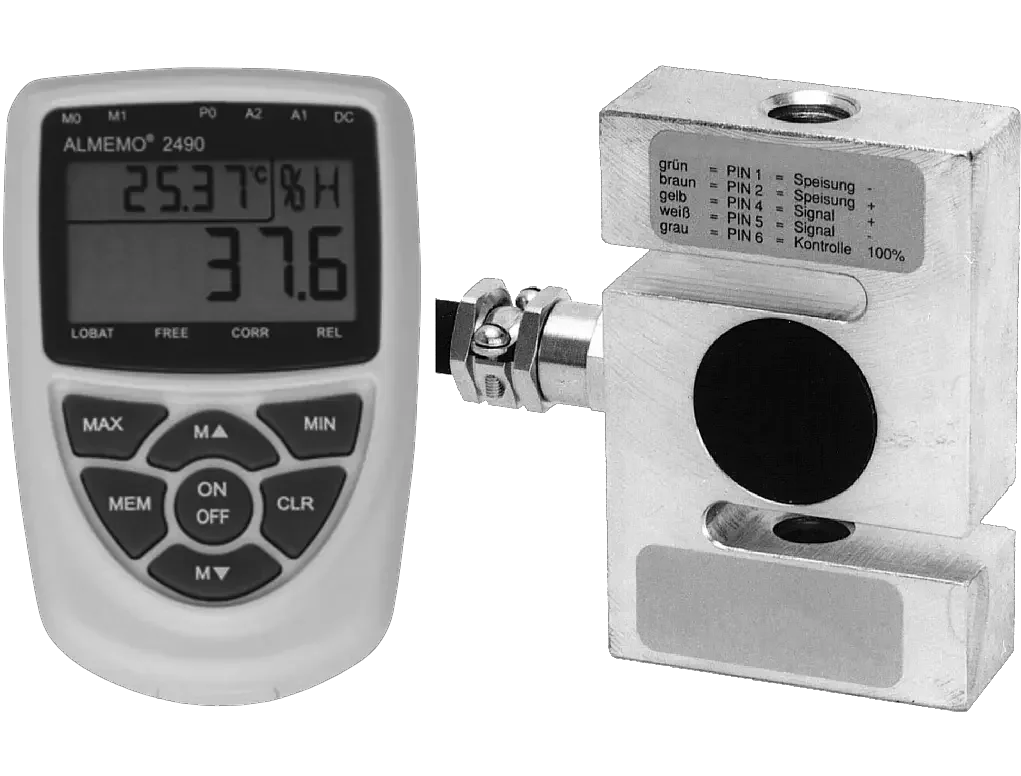

תא כח 50KN תצוגה ב N או ק"ג
כולל כבל 3 מטר ומחבר אלממו
Max. load limit: 150% of final value
Maximum dynamic load: 70% of final value
Reference temperature: 23°C
Accuracy for tension: <±0.1% of fin. val.
Accuracy for tension and compression: <±0.2% of fin. val.
Nominal measuring path: <0.15mm
Operative range: –10 to +70°C
Drift error at permanent load: <0.07% per 30min
Permissible lateral forces: ±60% of fin. val.
Protection system: up to 1kN: IP 65, from 2kN: IP 67
Material: up to 1kN: aluminium
2 to 50kN: stainless steel
