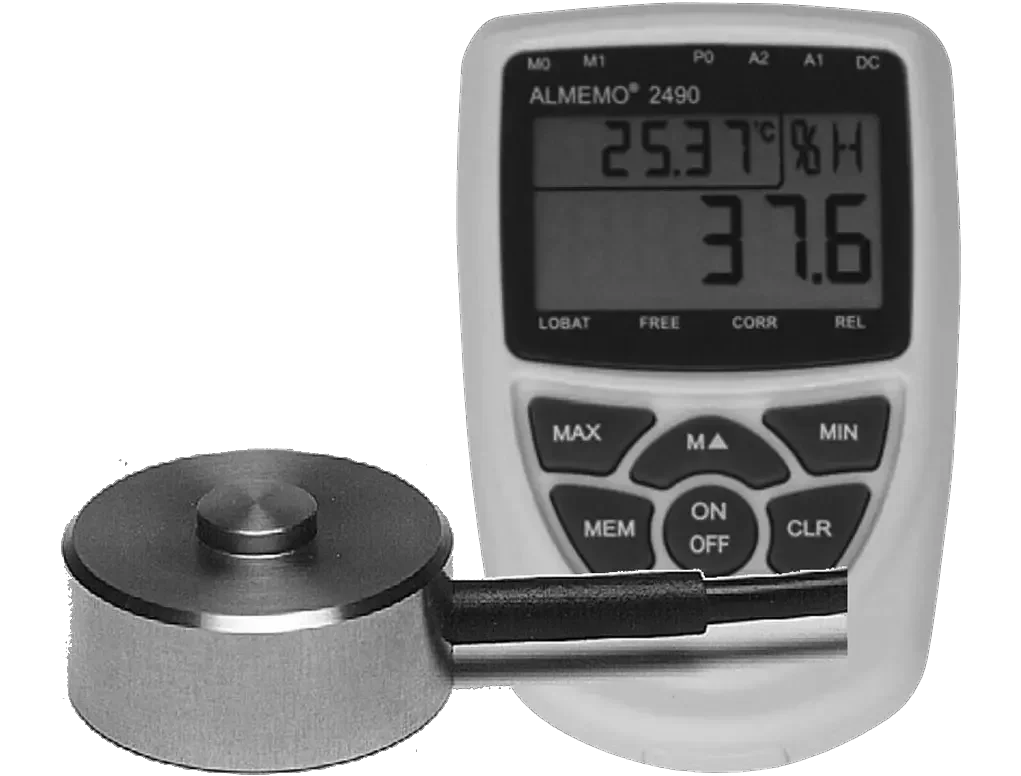

תא כח מיניאטורי טווח מדידה 100-2000 ניוטון לבחירה
קוטר הבלט העליון 3.5 מ"מ, קוטר כולל 16 מ"מ.
נא לציין טווח מדידה: 100N, 200N,500N,1000N,2000N.
Max. load limit: 150% of final value
Maximum dynamic load: 70% of final value
Reference temperature: 23°C
Cable: radial, 3m long with ALMEMO connector®
Accuracy: <±0.5% of final value
Nominal measuring path: <0.2mm
Operative range: –10 to +50°C
Drift error at permanent load: 0.1% per 30min
Protection system: IP 65
Material: stainless steel
F Wire strain gauges in four-conductor full-bridge circuit.
F Control resistance for final adjustment of the measuring
range.
F All measuring ranges that are specified in Newton can also be supplied in kg ranges.
