תנור אווירה עם ואקום עד 1100 צלזיוס עם כניסה לגז אינרטי

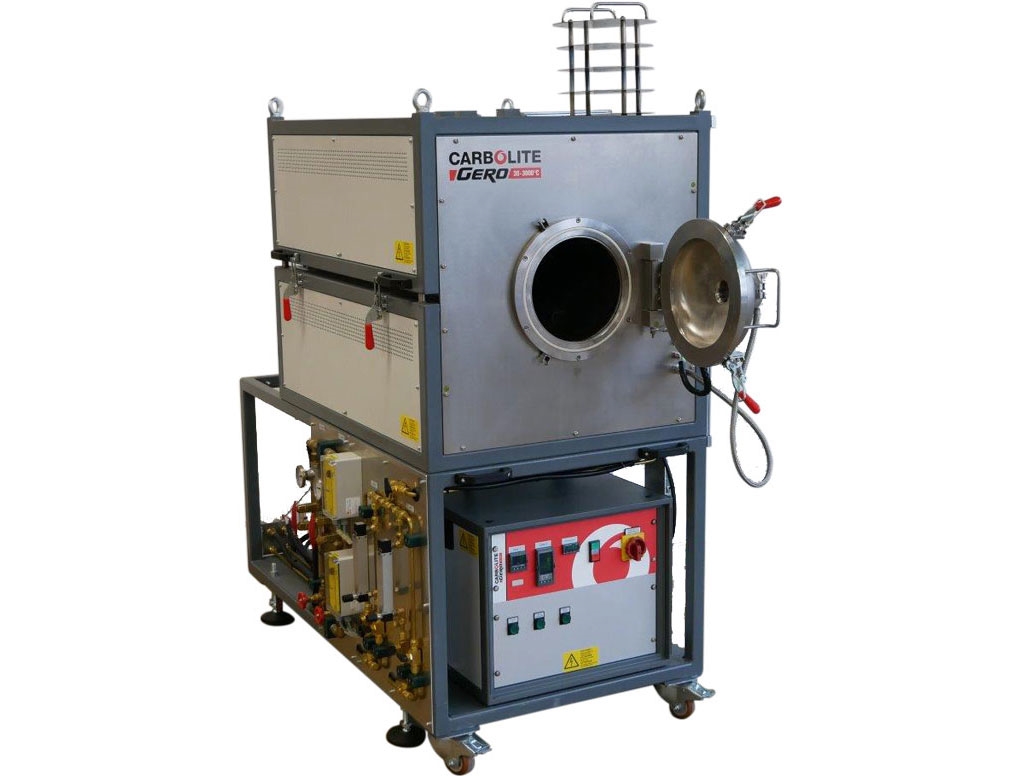

1100°C 10 liter manual furnace Vacuum, inert gases
for annealing, degassing, drying, glowing, hardening, pyrolysis,
tempering, thermal debinding prior to sintering
Usable space and volume
Ø250 x 250 mm, 10 l
Thermal values
-Delta-T between 300 and 1100°C (K) according to DIN 17052± 5
Max. heat-up rate (K/min)10
Cooling time (h)4 - 5
Vacuum (option)
Leakage rate - clean, cold and empty (mbar l/s)< 5x10-3
Vacuum range depending on the pumping unitrough, fine or high vacuum
Nitrogen or Argon flow, others on request (l/h)200-2000
Eurotherm controller type 3508.
Required infrastructure
Electrical power, cooling water, gas, compressed air, (propane for some applications)
Dimensions:
External H x W x D (mm)1800 x 850 x 1600
Transport weight
Complete system (kg)500
Power (kW)14
