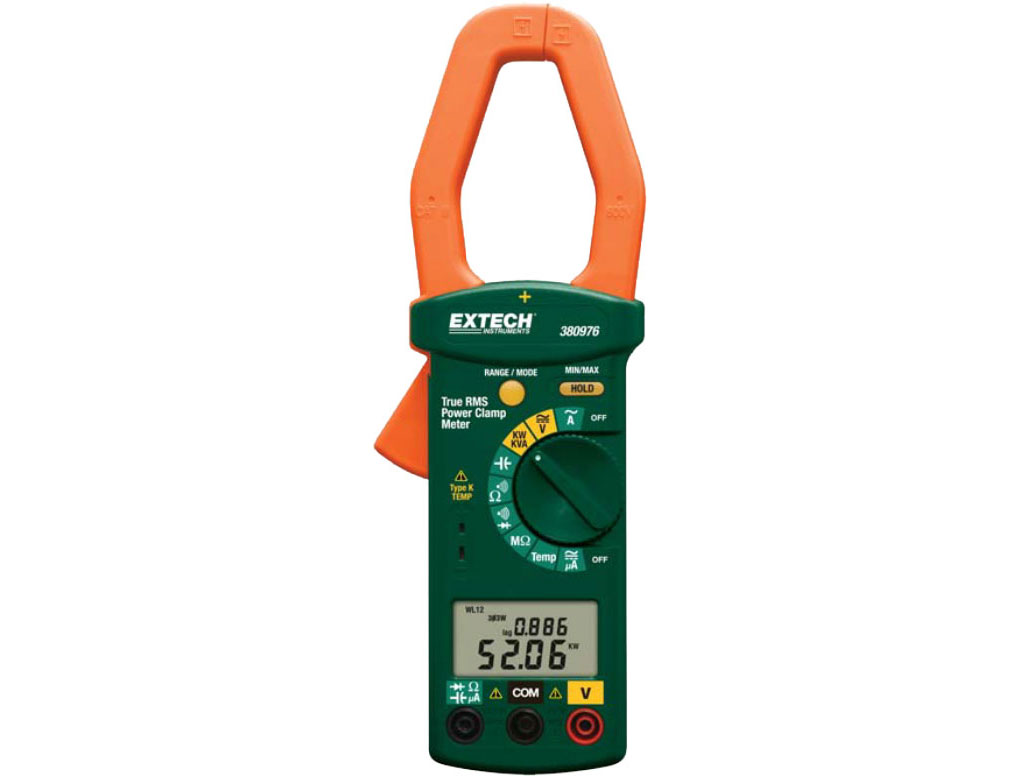

1φ 3φ 1000A AC Power Clamp Meter
CLAMP METER, HVAC (CATIV-600V TEST LEADS)
Measures Current, Insulation Resistance, Temperature (Type K) and Power
Including True Power, Apparent Power, and Reactive Power
Measures 1f/3fTrue Power (kW), Apparent Power (kVA),
and Reactive Power (kVAR), plus Horsepower (HP),
Power Factor, and Phase Angle with Lead/Lag indicator
Max/Min recording with elapsed time indication
AC Current: (Trms): 1000A / 10mA
Phase Angle (f): -60 to +60° / 0.1°
True Power (W): 600kW / 10W
uA Current (AC+DC) (Trms): 1000μA / 10nA
AC/DC Voltage: (Trms): 600V / 0.1mV
Resistance (Ω): 1000kΩ / 0.1Ω
Resistance (MΩ): 100MΩ / 1kΩ
Capacitance: 7000μF / 1nF
Frequency: 40Hz to 1kHz / 0.1Hz
Temperature (Type K): -58 to 1000°F / 0.1°F/-50 to 900°C / 0.1°C
Horsepower (HP) 800HP/0.01HP
