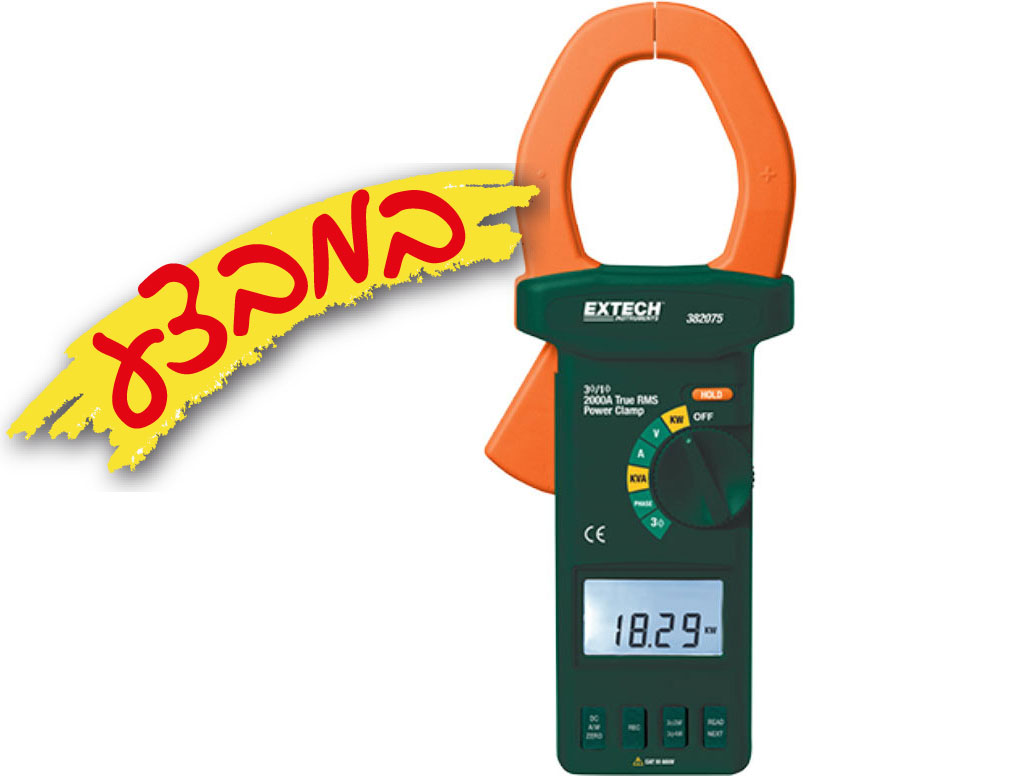

אנלייזר הספק צבת 3 פאזות
זרם AC/DC עד 2000 אמפר
מודד: זרם מתח תדר
KW, KVA , KVAR , POWER FACTOR, phase angle
True Power (W)1200kW0.01/0.1kW±2%+ 5d
Reactive (KVAR) Power1200KVAR0.01/0.1KVAR±2%+ 5d (PF<0.91)
Apparent (KVA) Power1200KVA0.01/0.1KVA±2%+ 5d
Power Factor (PF)0.2 to 10.01PF=W/(VxA)
Phase Angle (f)-90° to +90°0.1°±0.5°
AC/DC Current2000A0.1/1A±2%+ 5d
AC/DC Voltage600VAC/800VDC0.1/1V±2%+ 5d
Frequency40 to 400Hz0.1Hz±1%+ 2d
Dimensions/Weight10.7 x 4.8 x 1.8" (271 x 122 x 46mm)/ 24.7oz (700g)
כולל נרתיק נשיאה
