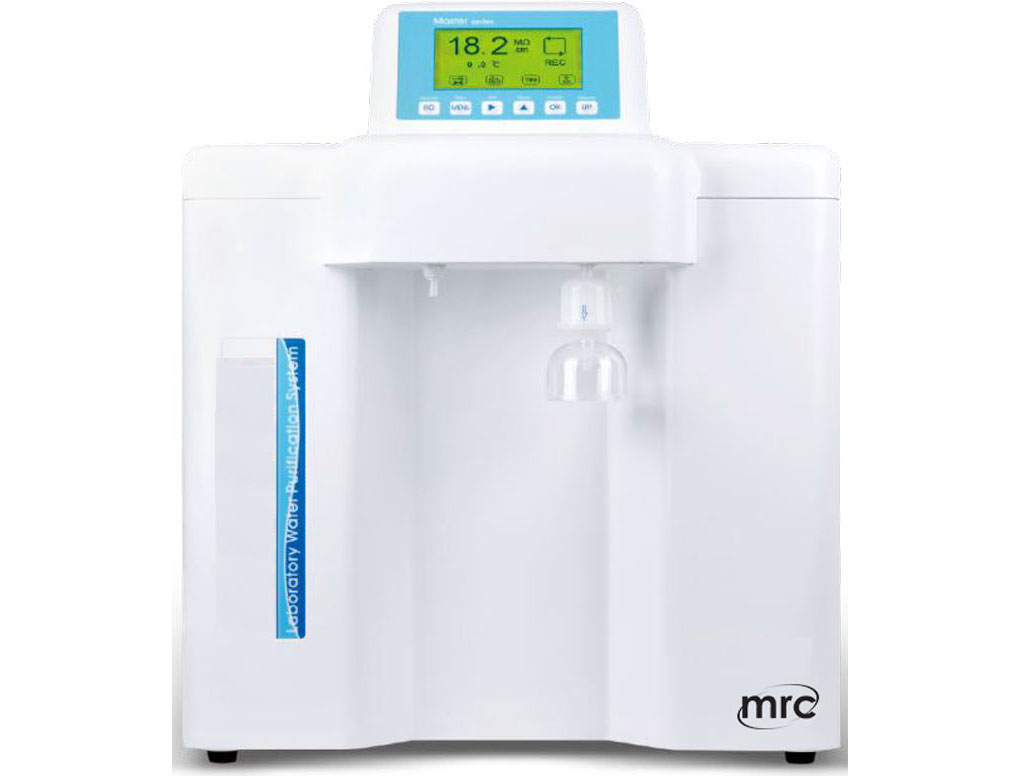

Deionized water system (Tap water inlet)

Deionized water system (Tap water inlet) 3

Deionized water system (Tap water inlet) 3

Output (25°C)* 10 liters/hour
Pure water outlet 2: reverse osmosis water, deionized water
==for EDI water quality==
Resistivity >5MΩ.cm
TOC* <30ppb
Silicone rejection rate>99.9%
Particle (>0.1μm): <1/ml
==for RO water quality==
Ion rejection rate 96%-99% (new RO membrane)
Organic rejection rate >99%, when MW>200 Dalton
Particles & bacteria rejection rate >99%
Feed water requirements Tap water, temperature: 5-45°C, pressure: 1.0-4.0Kgf/cm2
* The value will be influenced by temperature and feed water’s quality

קרא עוד >

מק"ט: WPL-EDI-RO-DI-10-UT

Output (25°C)* 10 liters/hour
Pure water outlet 2: reverse osmosis water, deionized water
==for EDI water quality==
Resistivity >5MΩ.cm
TOC* <30ppb
Silicone rejection rate>99.9%
Particle (>0.1μm): <1/ml
==for RO water quality==
Ion rejection rate 96%-99% (new RO membrane)
Organic rejection rate >99%, when MW>200 Dalton
Particles & bacteria rejection rate >99%
Feed water requirements Tap water, temperature: 5-45°C, pressure: 1.0-4.0Kgf/cm2
* The value will be influenced by temperature and feed water’s quality

מפרט טכני

הוראות הפעלה

תעודת CE

נתונים טכניים

מפרט טכני

WPL-EDI-RO-DI-10-UT_SPEC.pdf

הוראות הפעלה

WPL-EDI-RO-DI-10-UT_OPR.pdf

תעודת CE

WPL-EDI-RO-DI-10-UT_CE.pdf

שימושים

תאור

Output (25°C)* 10 liters/hour
Pure water outlet 2: reverse osmosis water, deionized water
==for EDI water quality==
Resistivity >5MΩ.cm
TOC* <30ppb
Silicone rejection rate>99.9%
Particle (>0.1μm): <1/ml
==for RO water quality==
Ion rejection rate 96%-99% (new RO membrane)
Organic rejection rate >99%, when MW>200 Dalton
Particles & bacteria rejection rate >99%
Feed water requirements Tap water, temperature: 5-45°C, pressure: 1.0-4.0Kgf/cm2
* The value will be influenced by temperature and feed water’s quality

אביזרים נילוים

סרטונים

מסמכים

מפרט טכני

הוראות הפעלה

תעודת CE

הורדות

בקשה להצעת מחיר
