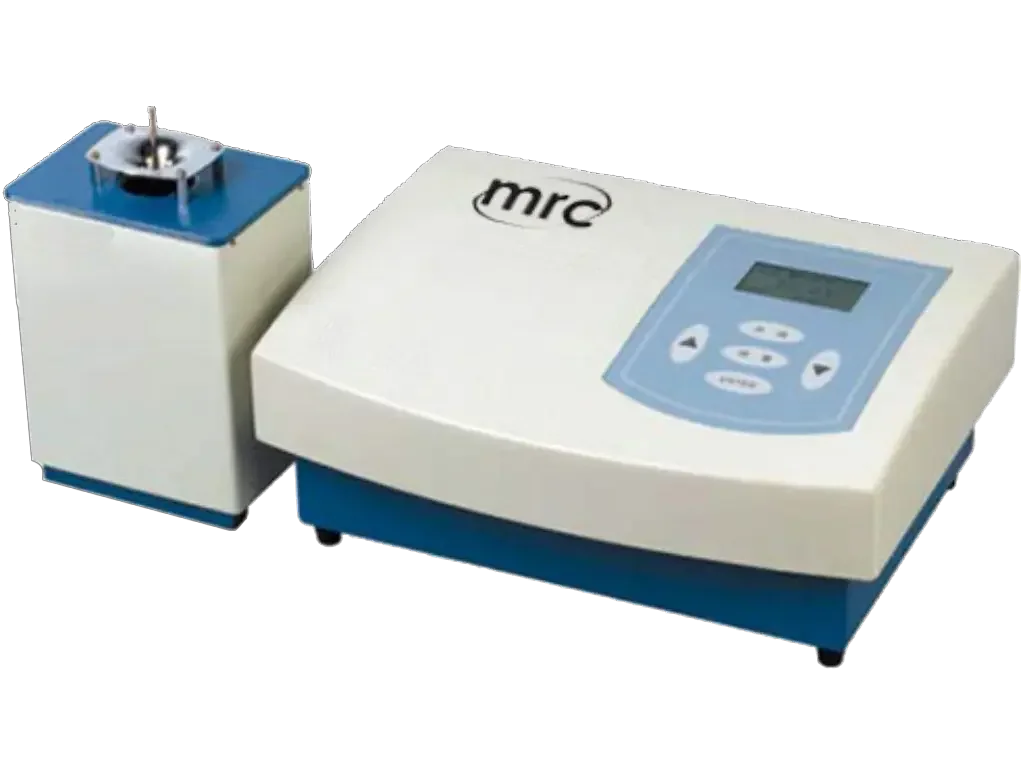

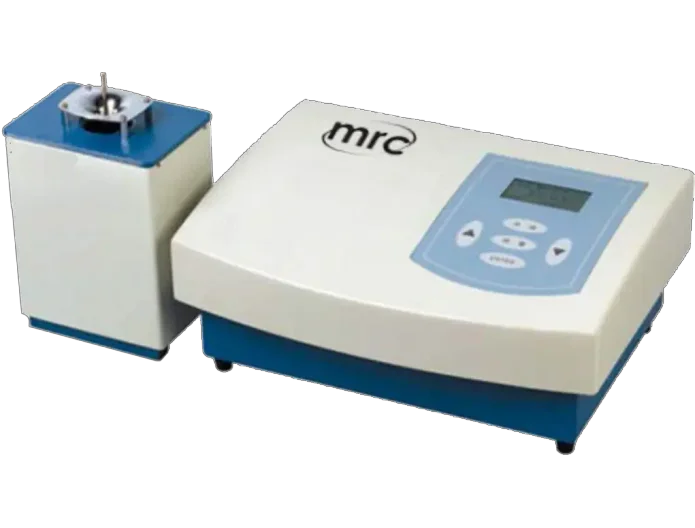

DROPPING-POINT AND SOFTENING-POINT APPARATUS
Measuring range room temperature -300°C
Minimum digital display 0.1°C
Linear heating rates 0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0°C/min
Furnace temperature ≤200°C: ±0.5°C: >200°C: ±1°C
The dimension of cup Ø9.9mm(inside diameter), R4.6±0.1mm(bottom radius)
Hole size
Ø2.8mm (dropping-point)
Ø6.35mm (softening-point)
Ø5.00mm (user choose)
