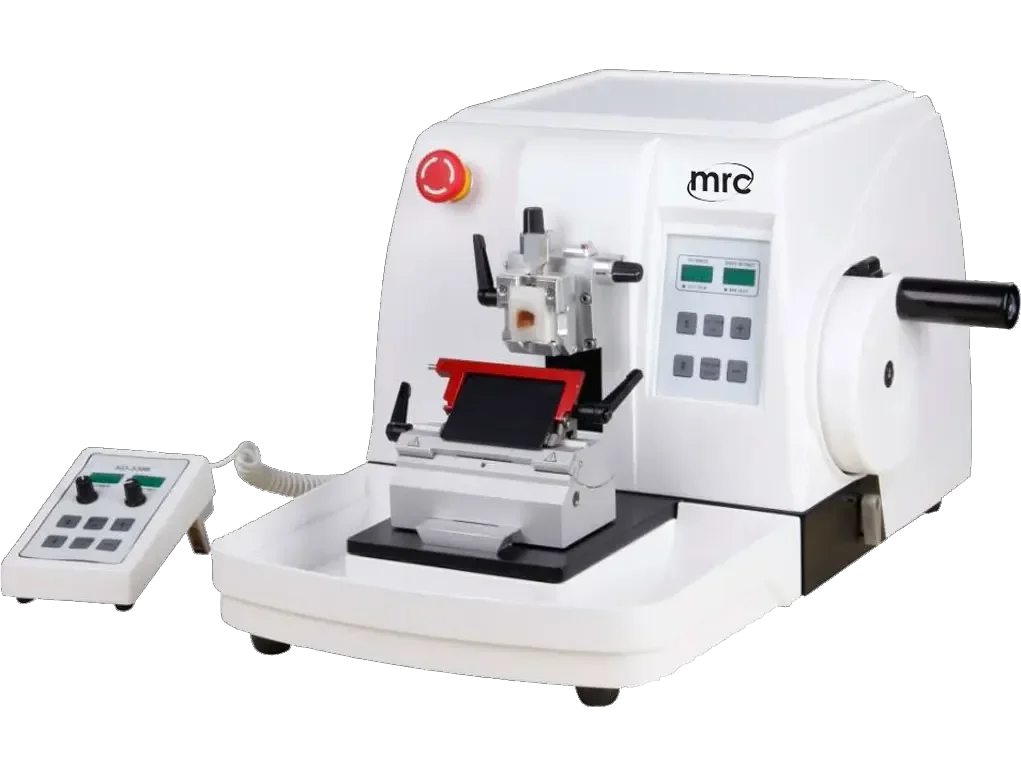

מיקרוטום אוטומטי לחלוטין

Section Thickness Setting Range
0.25—100μm
0.25—2.5μm increment 0.25μm
2.5—5μm increment 0.5μm
5.0—10μm increment 1μm
10—30μm increment 2μm
30—60μm increment 5μm
60—100μm increment 10μm
Trimming Thickness Setting Range:
1—600μm
1—10μm increment 1μm
010—020μm increment 2μm
020—050μm increment 5μm
050—150μm increment 10μm
150—600μm increment 50μm
Retraction Setting Range:
0—50μm ( 0 is off )
5-10-15—50 (optional)
Horizontal Feed: 25mm
Vertical Specimen Stroke: 70mm
Specimen Holder Rotation: at any angle within 360 degrees
Movement Range of the Base of Specimen Holder: 65mm (front to back)
Movement Range of the Blade Press plate: ±20mm
Specimen Clamp Rotation: at any angle within 360 degrees
Specimen Orientation: XY – 8°
Minimum Setting of Sectioning Thickness: 0.25μm
Maximum Specimen Size:70×70mm
Feed speed adjust: 1500μm/s ~ 3500μm/s
Precision Error: ±1%
Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power: 150W
Dimensions: 580× 475× 340mm(W×D×H)
Net Weight: 41kg
