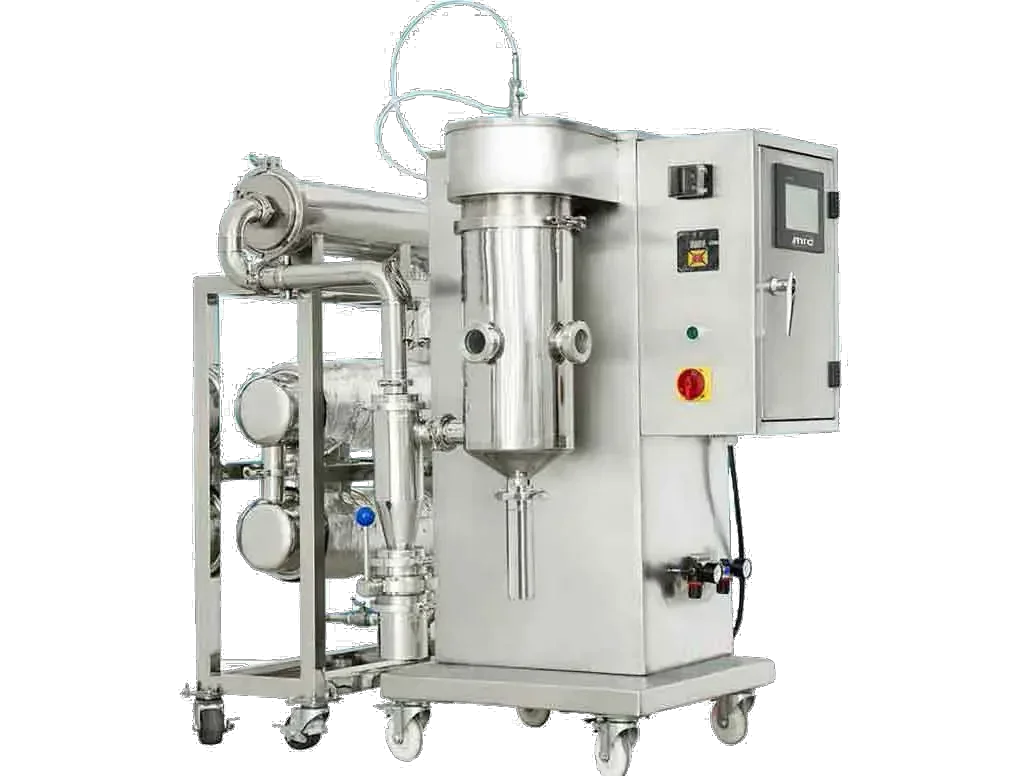

מייבש בהתזה לסולבנטים באוירה אינרטית

Inert Loop Spray Dryer
**Chiller is an optional part needed when working with solvents
**המחיר אינו כולל צ'ילר שנחוץ להפעלה הציוד

Power: 5000W
Min. outlet temperature: 40°C
Evaporating capacity: 1500ml/h
Airflow: 0-330m3/h
Max. Inlet temperature: 200°C
Heater power: 3500W
Temperature precision: ±1°C
Nozzle jet: 0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)
Nozzle type: Two fluid nozzle
Possible particle size range: 1-25µm
Mean Residence time: 1.0-1.5 sec.
Operation mode: Automatic/Manual
Max. Sample feed: 1500ml/h
Minimum sample volume: 30ml
Gas Type: N2 (for Solvent) or Compressed air (for aqueous)
Dimensions: 1050x1000x1650mm
Weight: 210kg
Display: 7-lnch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency
Inert loop (for organic solvents): Yes
