מייבש בהתזה באוירה אינרטית למים/סולבנטים

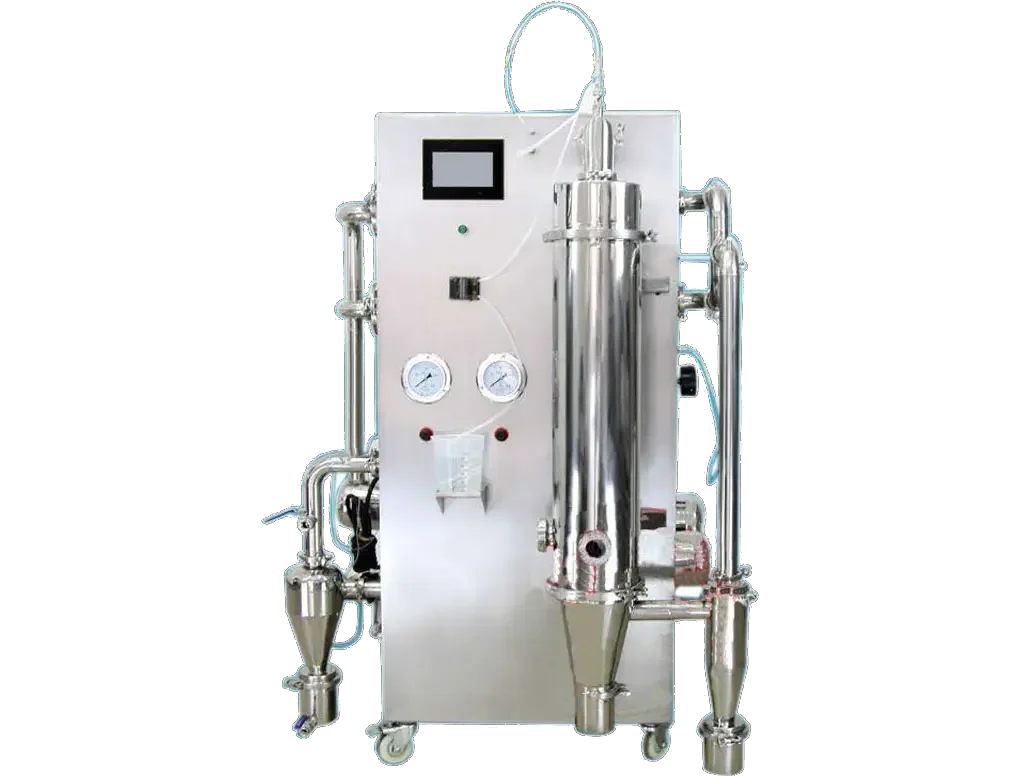

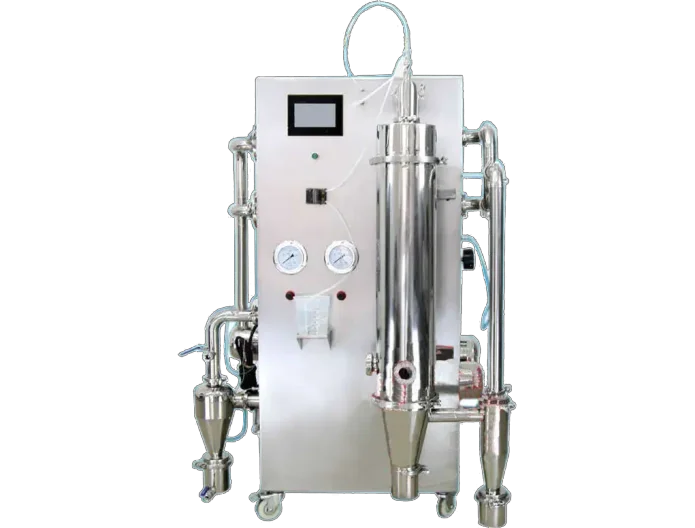

Inert Loop Spray Dryer
NOTE: Chiller is not included
Can be used to process the samples of aqueous solutions and
organic solvents.
Evaporation rate of water at inlet temperature of 250ºC using
Standard:Approximately 3500 ml/hour
Air inlet temperature range 60ºC to 250ºC
Dry Cycle time: 1.0-3.5S
Temp. Precision:±1℃
Max. Sample feed: 3500mL/H
Min. Sample feed : 100mL/H
operation interface in Chinese and English
obturating ring(each specification 50 respectively)
standard with 1.0 mm jet
The device has system to intensify and separate of organic
solvents (Inert loop spray drying with organic solvents)
