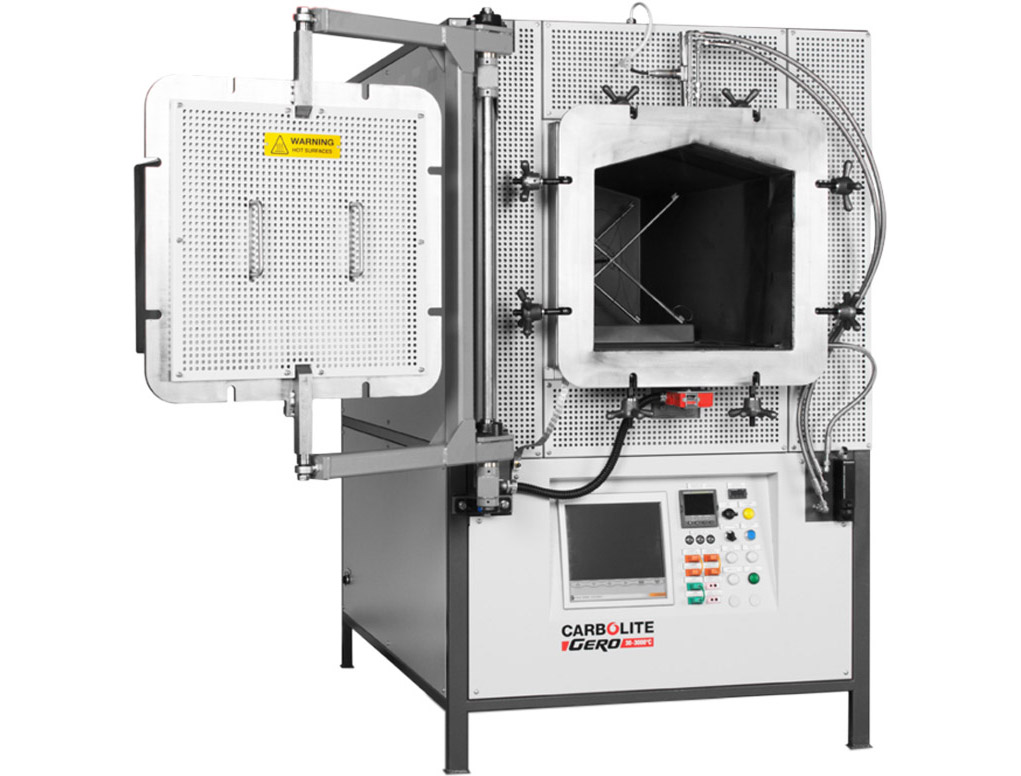

Modified Atmosphere Chamber Furnace
Equipped with a metallic retort to
provide a heated volume with a controlled atmosphere
Retort 310 Stainless Steel Volume (litres) 245
Max temp (°C) up to 1000°C
This includes 3508P1 programmer and overtemperature protection
Dimensions:External H x W x D (mm)
2145 x 1460 x 2025
Dimensions:Internal Chamber Size H x W x D
(mm)
650 x 700 x 1050
Dimensions:Retort Internal Size H x W x D (mm)
500 x 600 x 815
Dimensions:Uniform Volume H x W x D (mm)
400 x 500 x 550
Max power (W) 45000
Weight (kg) 950
