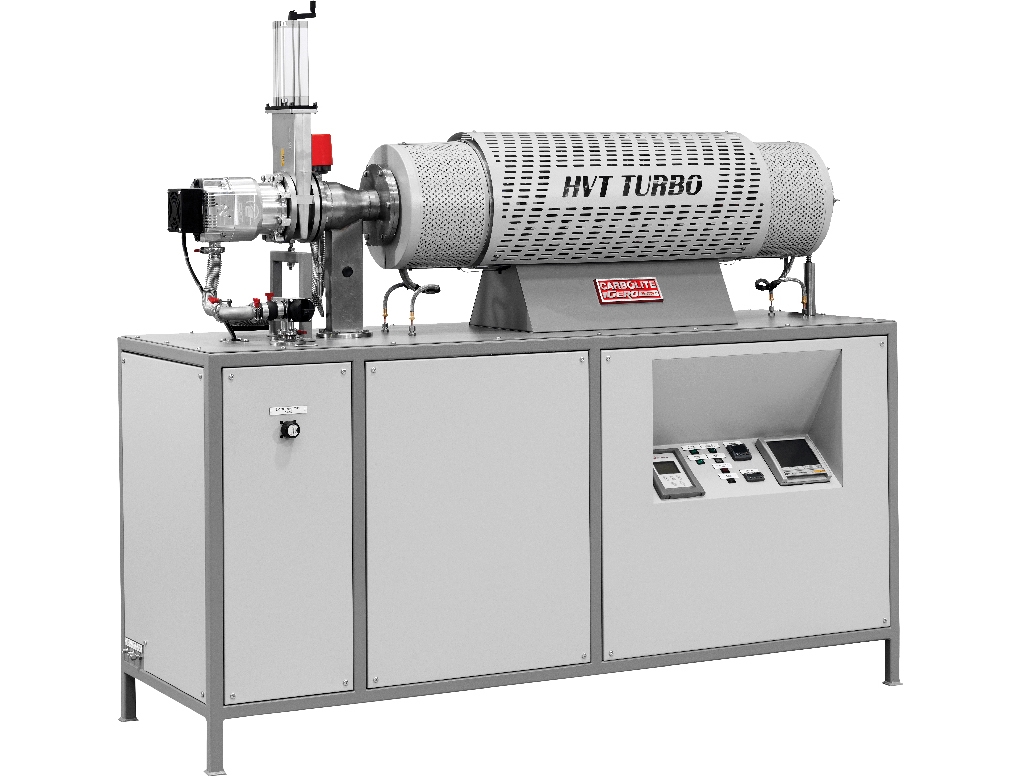

HVTT - High Vacuum Tube Furnaces
1500°C maximum operating temperature
Capable of 10-5 mbar vacuum in a clean empty work tube
Supplied with work tube inner diameters of 75 mm
Heated lengths of 450 mm
Vacuum provided by oil-free scroll pump & turbo-molecular pump
Cooling water failure alarm
Manually operated roughing / backing valve
Pirani gauge low vacuum monitor
Penning gauge high vacuum monitor
Work tube connects to the vacuum system via stainless steel connection
Access to the work tube is via a removable stainless steel vacuum flange
Radiation shields at both ends of the work tube maintain uniformity without reducing pump speeds
All controls are mounted within the base unit
Max temp (°C)1500
Dimensions: Worktube inner diameter (mm)75
Dimensions: Heated tube length (mm)450
Dimensions:
External H x W x D (mm)1565 x 1700 x 600
Max power (W)5500
Holding power (W)4800
Thermocouple typeR
