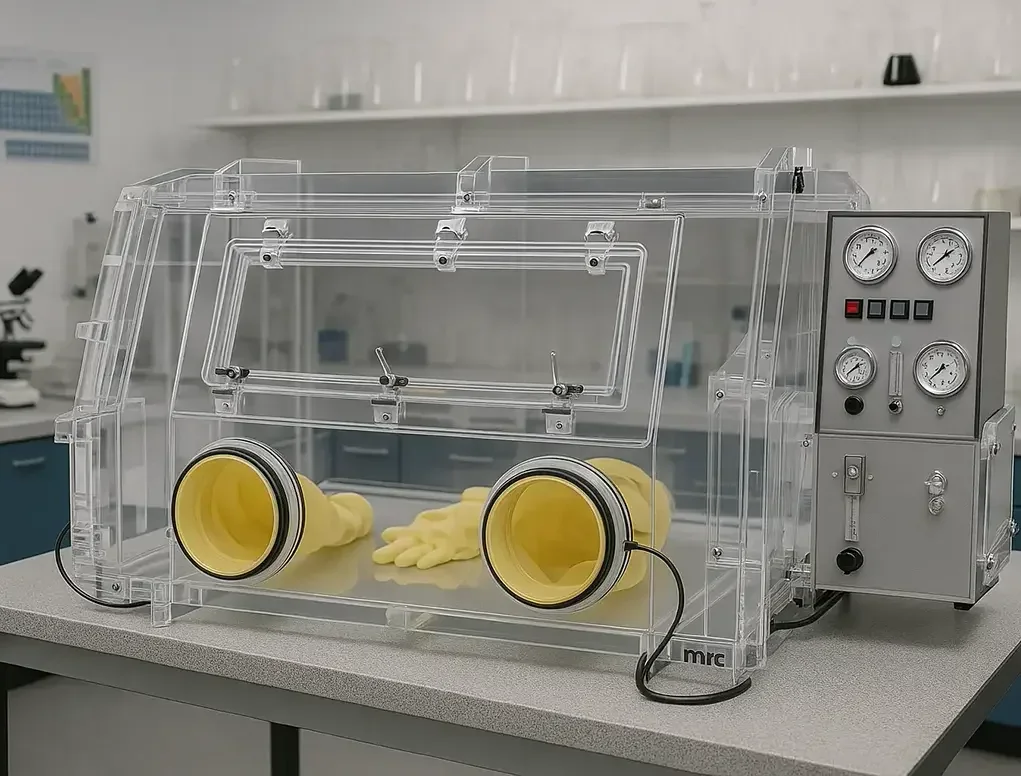

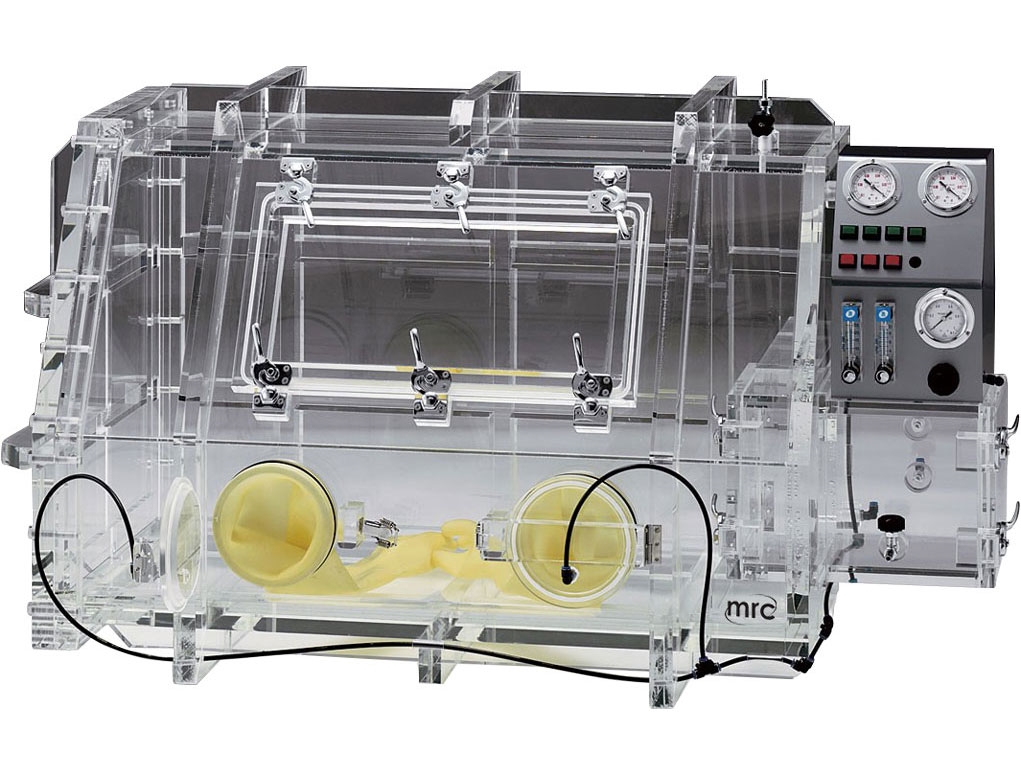

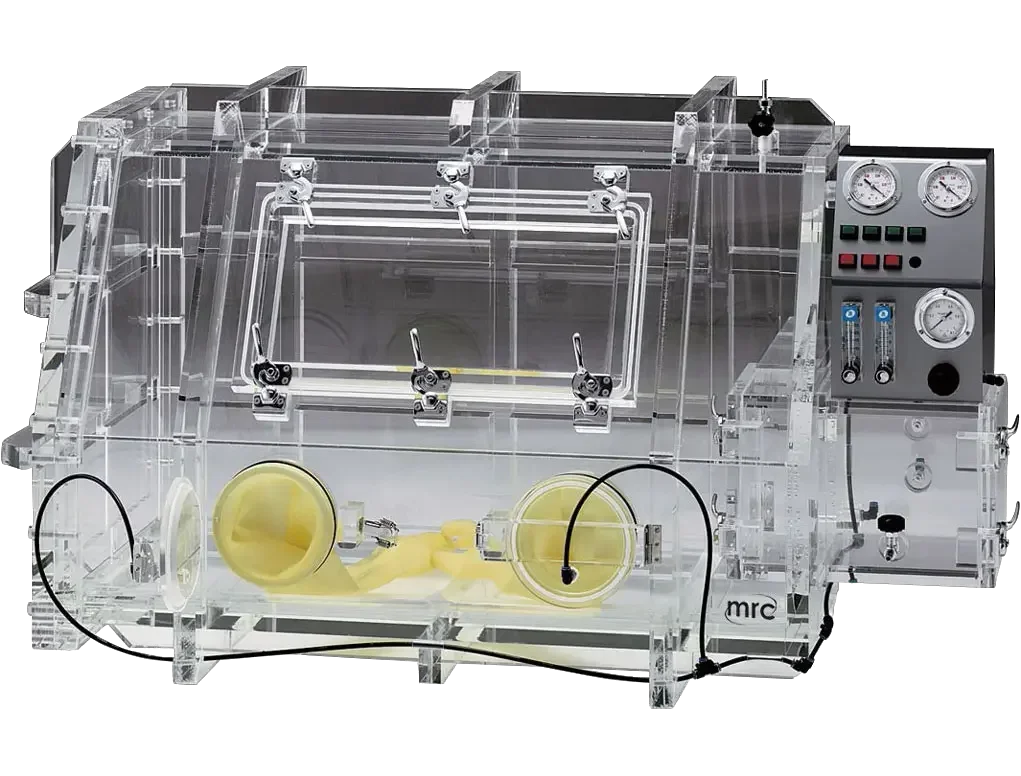

This type allows you to detach the whole door
on the left side from main body so that large equipment
can be put in and out smoothly.
Front opening size: 250mm x 500mm
Easy gas purge operation via buttons to start or stop vacuum pump, exhaust and supply gas.
The inner diameter of pass box(mm): 310Wx200Dx200H
Valve on main body and pass box :each 1pc, nozzle diameterφ9mm
Glove and Glove band: 1 set
Glove port door: 1 pair (when used in decompression )
Main body: 1349W×698D×780Hmm
Internal dimension: 834W×270D(upper)/430D(lower)×560Hmm
Weight: 145Kg
