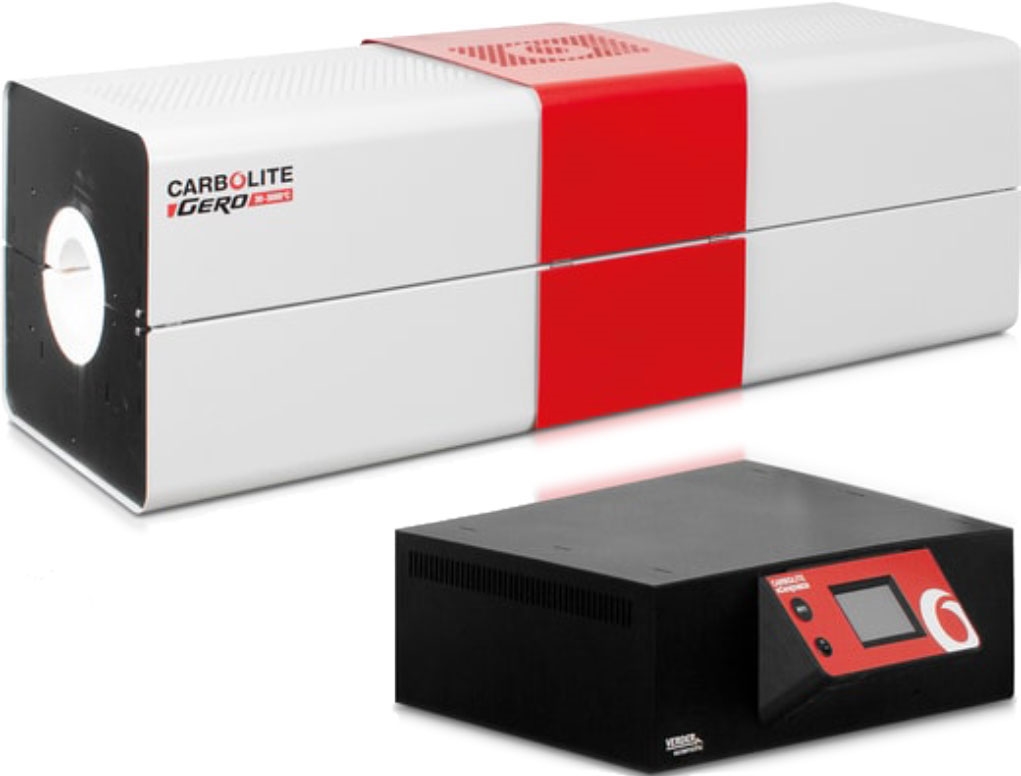

Up to 100mmØ x 600mm Heated length,
3 zone tube furnace,Max temp (°C)1600
Tubes with outer diameter 32mm up to 100mm
Uniform length ± 5 °C[mm] 460
Heat-up time (mins)
CC-T1 24 Segments programmer+Ethernet Comunication & Seperate control box
Max continuous operating temp (°C)1500
Recommended tube length for use in air (mm)1180
Recommended tube length for use with modified atmosphere (mm)1400
Dimensions:790 x 1090 x 705mm
Max power (W)8000
Holding power (W)3700
Thermocouple typeR
Weight (kg) 100
