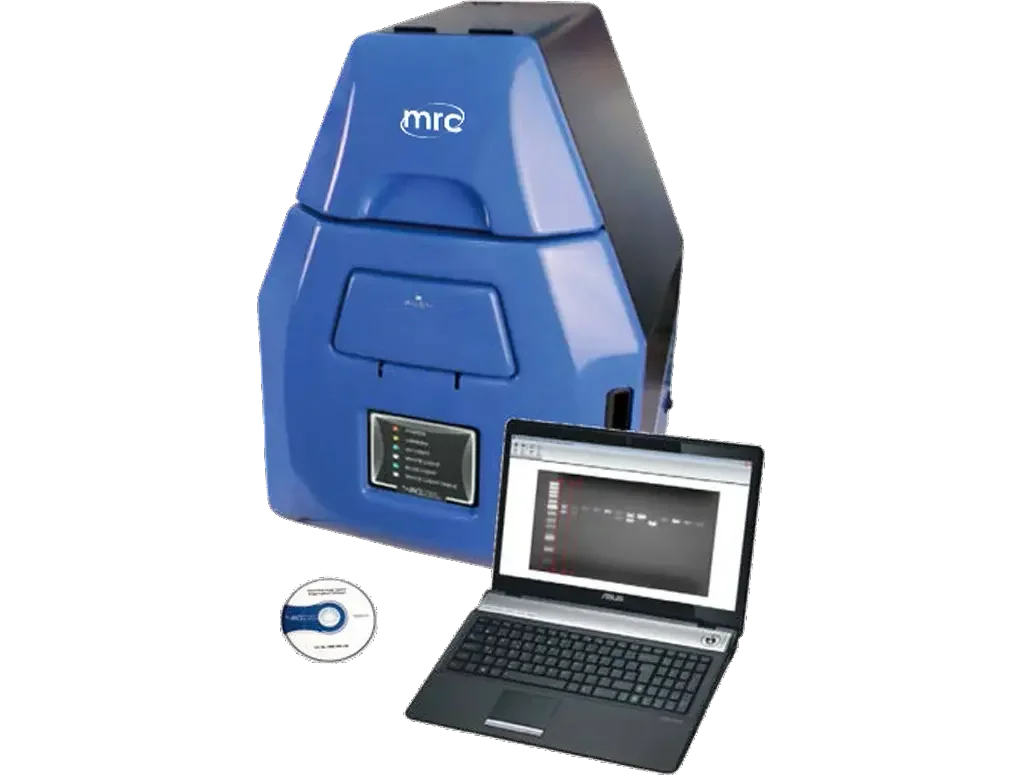

SmartView Imager System (CCD standard version)
MS designed Imager software with USB connection to PC
Built-in, 21 x 26cm pullout UV-transilluminator
Pre-focused len, no need adjustment
PC required
Optional blue LED or white light table available
Imager Analysis software included FREE of charge !!
UVCI-2100 is not a stand alone unit, you'll need to have a PC or laptop to control.
UV light 312(302) nm
Camera1/1.8" Interline UXGA monochrome progressive CCD
Lens (Camera) 6 mm, F1.2
Camera Video Output12-bit
Filter (Camera) *Ordered SeparatelyOptical EtBr filter / Optical SYBR Green filter / Yellow Amber filter / Orange Amber filter
Image Storage PC
Connection USB to PC
Software Support Windows 8 / Window7 (64bit & 32bit) / XP / Vista
Cabinet Pull out, sliding transilluminator
Field of view 8.26" x 10.24" (210 x 260 mm), H: 3.46" (88mm)
Dimensions (W x D x H) (410 x 405 x 570 mm)
Unit WeightApprox. (24.5 kg)
Display LED
Viewing Window For gel observation
Window Filter 560 nm amber filter (standard)
Light White light (standard)
Optional Accessory White light table (power built-in)
470 nm Blue light (power built-in)
Safety CE
USB portfor PC connection
