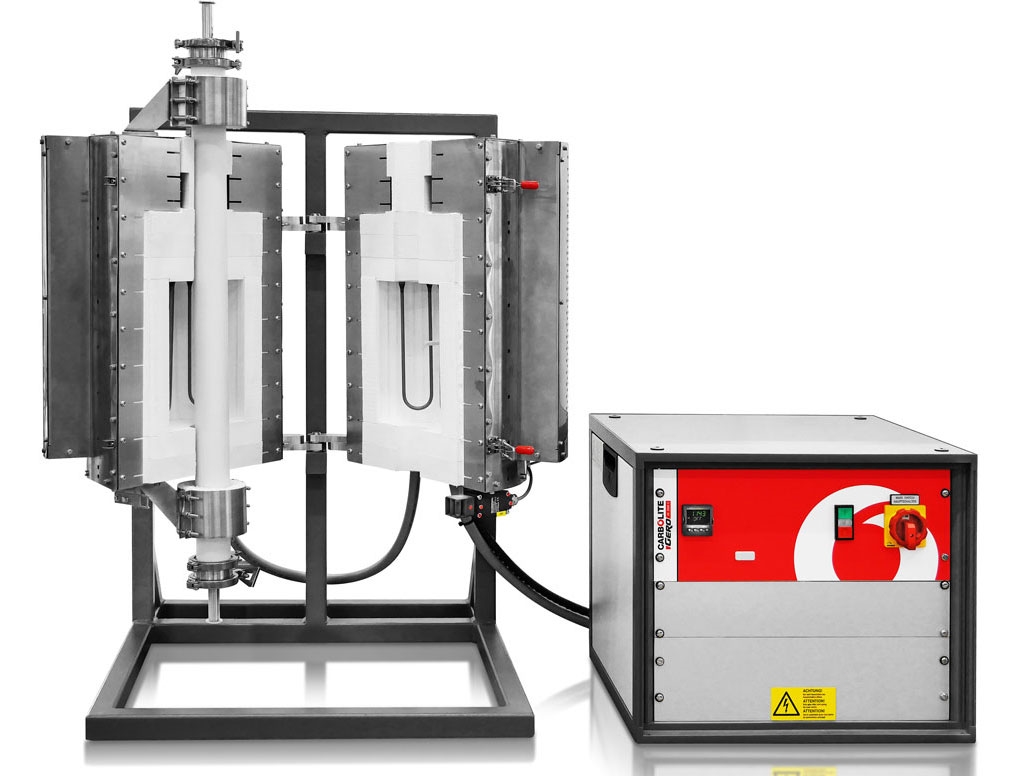

Vertical High Temperature Split Tube Furnace
Max temp (°C)1600
Max outer diameter accessory tube (mm)70
Heated length (mm)500
Dimensions:
External H x W x D (mm)1050 x 700 x 890*
Furnace weight (kg)120
Tube length for use in air (mm)850
Tube length for use with modified atmosphere (mm)1290
Control module dimensions H x W x D (mm)850 x 560 x 500
Control module weight (kg)90
Uniform length ±5°C (mm)250
Power (W)8000
