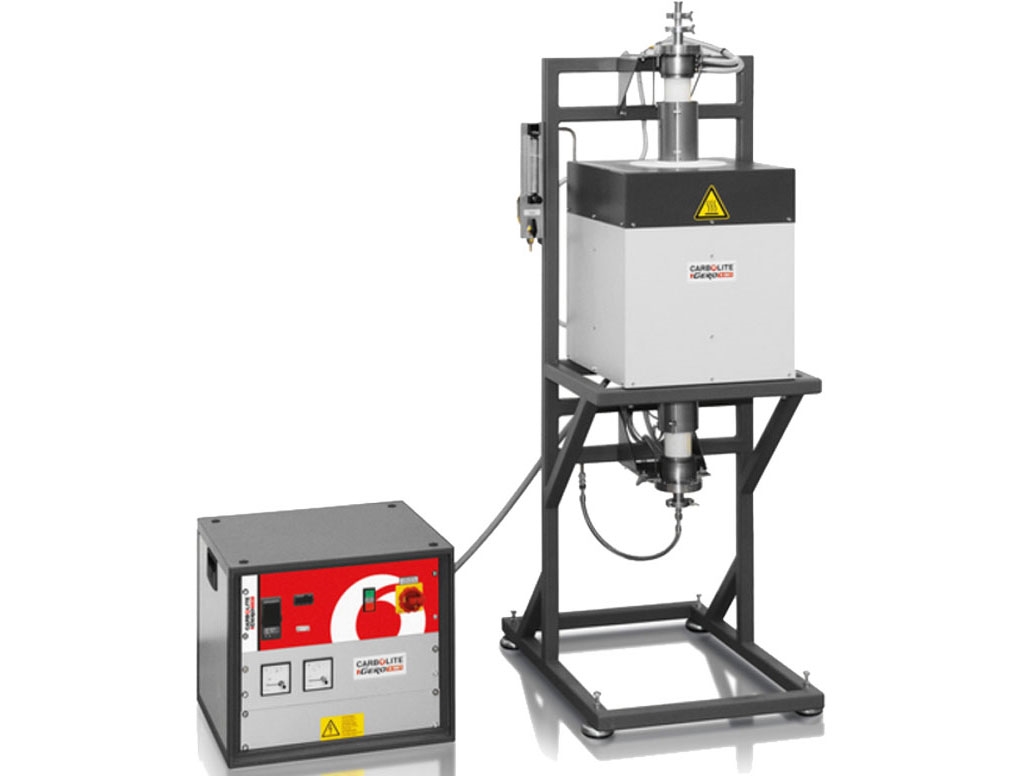

Vertical tube furnace up to 1700 °C,
Max outer diameter accessory tube (mm) 40
Heated length (mm)250
Molybdenum disilicide heating elements,
Max temp (°C)1700
Dimensions:
External H x W x D (mm)515 x 455 x 455
Outer dimensions furnace without stand,
Stand is optional available,
Furnace weight (kg)30
Tube length for use in air (mm)355
Tube length for use with modified atmosphere (mm)890
Uniform length ±5°C (mm)50
Max power (W)3600W/230V
Adjustable digital over temperature protection with separate thermocouple and controller,
Control module dimensions H x W x D (mm)480 x 560 x 500
3 metre cable to separate control module, plug adds 150 mm to depth of control module
Control module weight (kg)50
