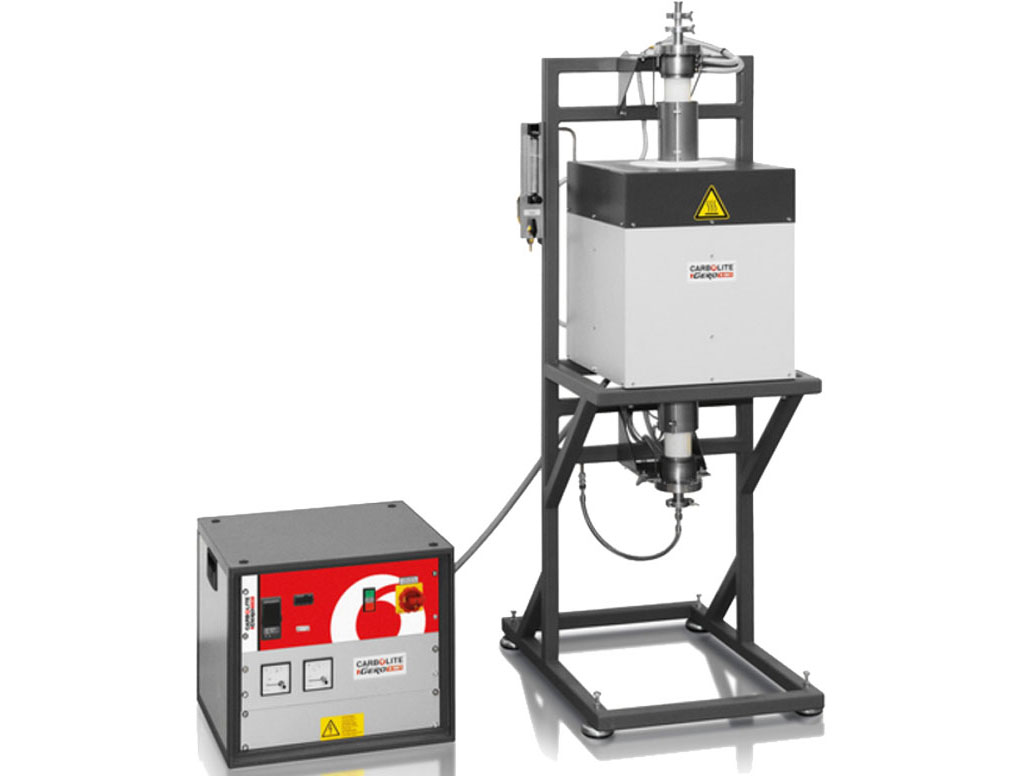

High temperature vertical tube furnace
Max outer diameter accessory tube (mm)40
Heated length (mm)100
Max temp (°C)1600
Without the worktube and Stand
Dimensions:
External H x W x D (mm)365 x 455 x 455
Furnace weight (kg)30
Tube length for use in air (mm)355
Tube length for use with modified atmosphere (mm)890
Control module dimensions H x W x D (mm)480 x 560 x 500
Control module weight (kg)50
Uniform length ±5°C (mm)50
Max power (W)2000
