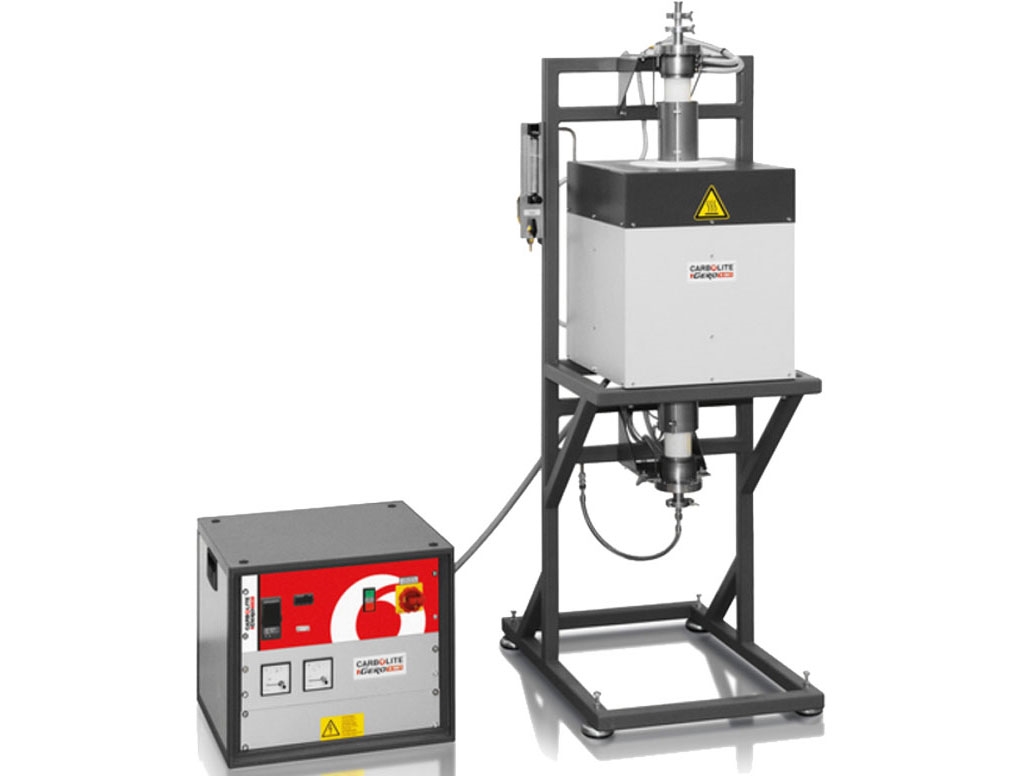

High temperature vertical tube furnace
Max outer diameter accessory tube (mm) 40
Heated length (mm) 250
Max temp (°C) 1800
Dimensions:
External H x W x D (mm)515 x 455 x 455
Furnace weight (kg) 40
Tube length for use in air (mm) 505
Tube length for use with modified atmosphere (mm) 1040
Control module dimensions H x W x D (mm) 500 x 550 x 700
Control module weight (kg)50
EUROTHERM EPC3016P1 1x 24 segment programmer
Over-temperature controller with independent
thermocouple
Uniform length ±5°C (mm)125
Max power (W)3000
